Rapid Readout Biological Indicators

Time: 2017-05-28
Views: 6219
Category: Infection Control
Type: Accessories
Product Details

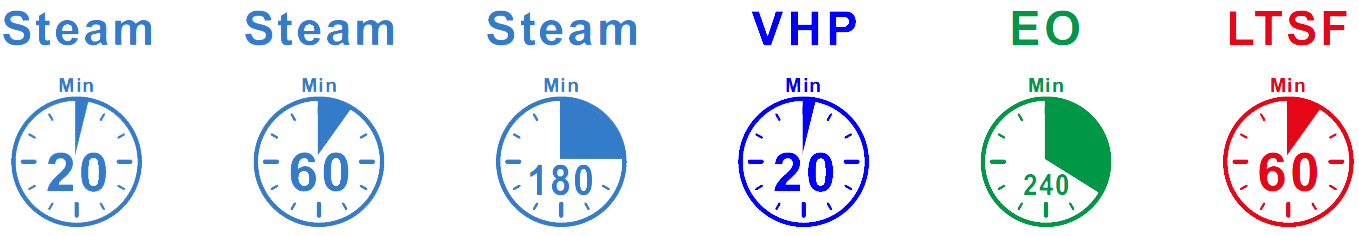

Readout Time

Introduction

UGAIYA® branded UGBI series and Fulcare® branded FCBI series Rapid Readout Biological Indicators is widely applied for release control and validation of various sterilization methods. It adopts spectrum analysis technology to monitor the fluorescence changes of the Bacillus Stearothermophilus and Bacillus Atrophaeus with special enzyme to rapidly judge whether there is surviving spores. Working together with UG-AR series Auto Readers, or FC-AR series Auto Readers  they provide very short readout time of 20mins - 4hrs. Making a fast and safe release of sterilization loads, shortening the turn-around time of surgical instruments.



Rapid Readout Biological Indicators are widely used in medical facilities or pharmaceutical industry to validate sterilization cycles of different kinds. The rapid readout time of 20mins to 4 hours enables implantation operations can be carried out in time, and in the meantime, a report can be printed for traceability.



Industry-leading high readout results consistency comparing to the incubation result after 24 hours making it very reliable for release of the load.



Technical Specifications


Model

UGBI0201

FCBI0201

UGBI0101

FCBI0101

UGBI0301

FCBI0301

UGBI0102

FCBI0102

UGBI0103

FCBI0103

UGBI0401

FCBI0401

Application

Steam (Vacuum & Gravity)

VH2O2

Formaldehyde Vapor

Ethylene Oxide

Organism

G-Stearothermophilus

(ATCC7953)

G-Stearothermophilus

(ATCC7953)

G-Stearothermophilus

(ATCC7953)

G-Stearothermophilus

(ATCC7953)

G-Stearothermophilus

(ATCC7953)

Bacillus Atrophaeus
    (ATCC9372)

Population

(mean/strip)

≥1.0x106 c.f.u.

D-Value

≥1.5min (121°C Steam)

≥1s

(50°C, 5mg/L VH2O2)

≥6min (60±0.5°C,     1.0±0.01mol/L LTSF)

≥2.5min

(54±1°C, 60±10% RH,     EO, 600±90mg/L)

Incubation Time

4min - 20min

(Readout)

15min - 60min

(Readout)

30min - 180min     (Readout)

4min - 20min

(Readout)

15min - 60min

(Readout)

60min - 240min
    (Readout)

Frequency of Use

Test 1 time for every sterilization cycle

Packing

50Pcs/Box

Cap Color

YELLOW

BLUE

COFFEE

INDIGO

RED

GREEN
